frameless glass balustrades 144x
test certificates and approvals (German only)
system profile set cp-1444
for floor construction
- top-mounted on balconies or balustrade walls
- completely submersible in the floor for maximum transparency as room divider
- with two or more glass panels, no connection of the handrail to a substructure is necessary
- trouble-free outdoor applications made possible by a thick anodized
protective layer. - glass panel widths up to 6 m possible
- glass panel heights up to 1500 mm, applicable for balconies over 12 m
- glass panels with holes for handrail supports are permissible
- glass insert depth = 100 mm
- glass type = LSG with FTG (FTG-H)
- glass thicknesses = 16,76/ 17,52/ 20,76 and 21,52
- glass panels are linear supported
set contents
for 16,76 mm glass
| art.no. | material | length (mm) | glass thickness |
|---|---|---|---|
| 1444E123-16-2500 | Aluminium | 2500 mm (-0/+2) | 16,76 mm |
| 1444E123-16-5000 | Aluminium | 5000 mm (-0/+2) | 16,76 mm |
customized cutting available upon request. connection of two profiles with connector stud 1440-3VA.

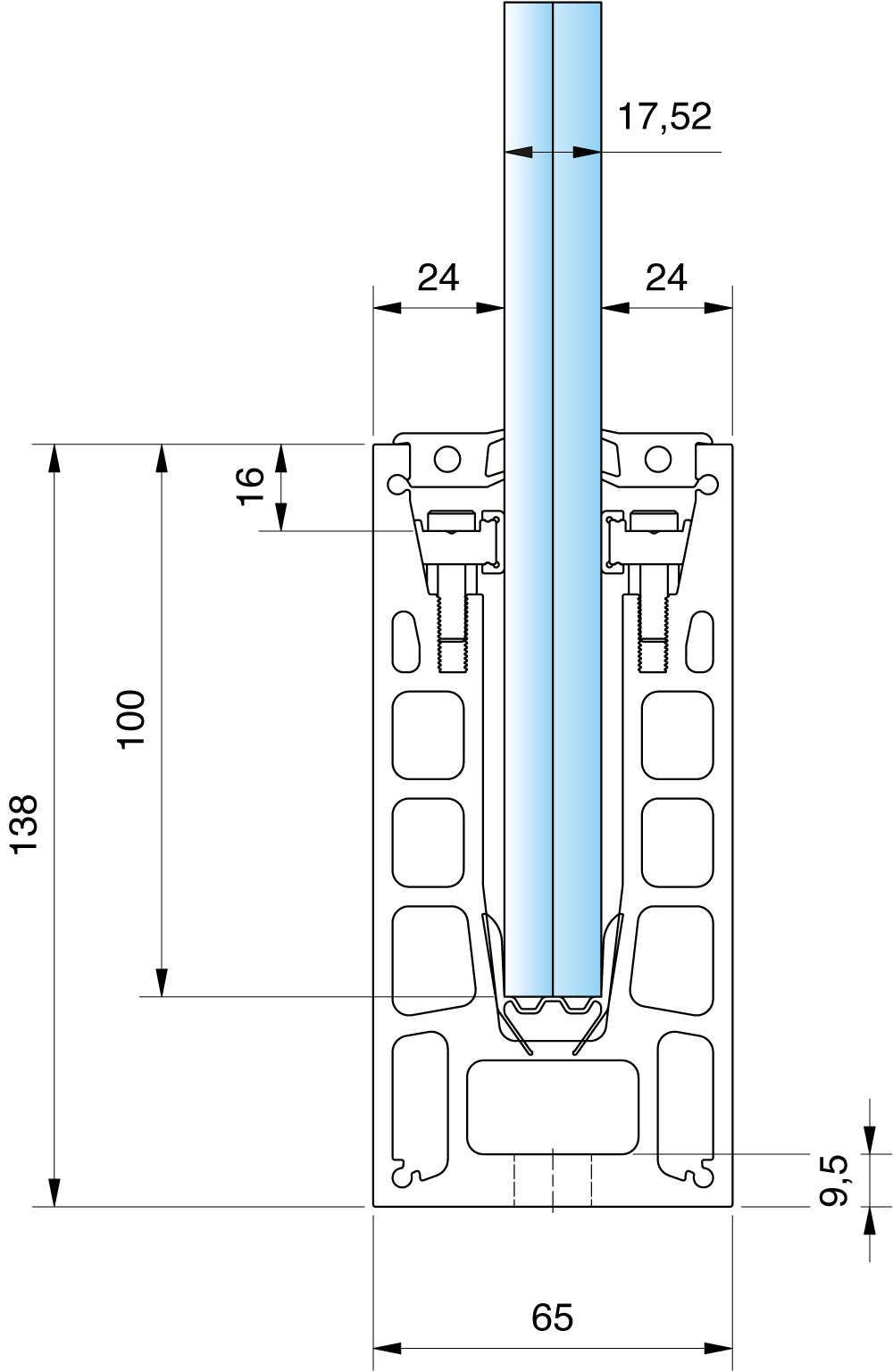

for 17,52 mm glass
| art.no. | material | length (mm) | glass thickness |
|---|---|---|---|
| 1444E123-17-2500 | Aluminium | 2500 mm (-0/+2) | 17,52 mm |
| 1444E123-17-5000 | Aluminium | 5000 mm (-0/+2) | 17,52 mm |
customized cutting available upon request. connection of two profiles with connector stud 1440-3VA.
for 20,76 mm glass
| art.no. | material | length (mm) | glass thickness |
|---|---|---|---|
| 1444E123-20-2500 | Aluminium | 2500 mm (-0/+2) | 20,76 mm |
| 1444E123-20-5000 | Aluminium | 5000 mm (-0/+2) | 20,76mm |
customized cutting available upon request. connection of two profiles with connector stud 1440-3VA.
for 21,52 mm glass
| art.no. | material | length (mm) | glass thickness |
|---|---|---|---|
| 1444E123-21-2500 | Aluminium | 2500 mm (-0/+2) | 21,52 mm |
| 1444E123-21-5000 | Aluminium | 5000 mm (-0/+2) | 21,52 mm |
customized cutting available upon request. connection of two profiles with connector stud 1440-3VA.
anchor points
2500 mm
anchor points
5000 mm
drainage holes
For the drainage of the profiles, the hole spacing must be determined by the customer and and drilled on site.
cp-1444
frameless glass balustrade – for floor construction
safety
test certificate
assembly instructions
system profiles cp-1444
1440, 1442, 1443, 1440 system profiles
assembly instructions for system profiles 1440, 1442, 1443, 1440
system static
For further documentation such as the test certificate (abP), system-static, assembly instructions, etc.. please feel free to contact us: info@pauli.de
