FARFALLA

series overview

series overview

8128_chrom

8128_mattchrom

8128_VA

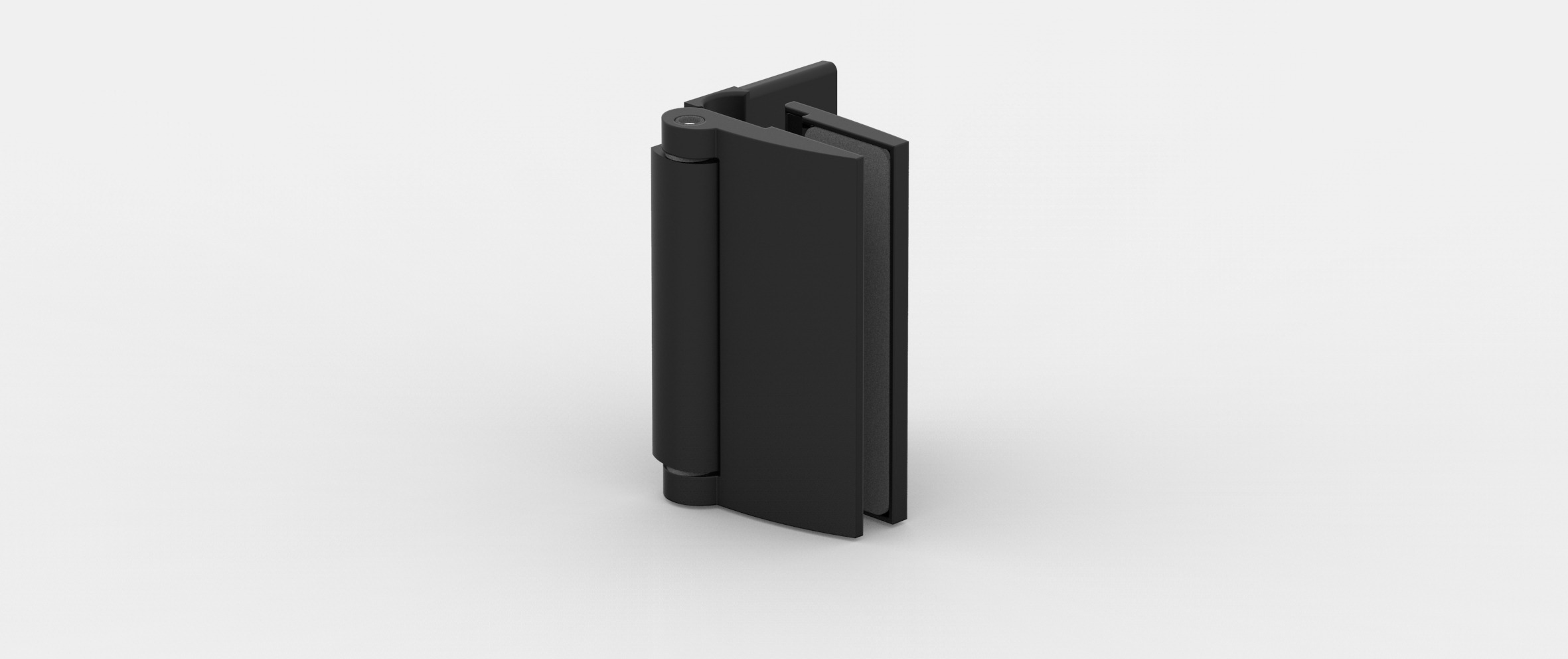

8128_schwmatt

blankkrom mattkrom RF look RAL9005 matt svart

Föregående Nästa

pendelgångjärn FARFALLA

8128_GW fond

glas-vägg 90°

detaljer monteringsanvisningar

art.-nr.	8128
egenskaper	opens outwards 90° oblong hole adjustment with cover plate continuous seal profile concealed screws with cover plate
glastjocklek	6 / 8 / 10 mm
ytbehandling	ZN5 = blankkrom ZN1 = mattkrom ZNPVD22 = RF look ZN35 = matt svart

8120_GW_innen

glas-vägg 90°

detaljer monteringsanvisningar

art.-nr.	8120
egenskaper	opens inwards 90° oblong hole adjustment with cover plate continuous seal profile concealed screws with cover plate
glass thickness	6 / 8 / 10 mm
ytbehandling	ZN5 = blankkrom ZN1 = mattkrom ZNPVD22 = RF look ZN35 = matt svart

8122_GG_180

glas-glas 180°

detaljer monteringsanvisningar

art.-nr.	8122
egenskaper	opens outwards 180° continuous seal profile concealed screws with cover plate
glastjocklek	6 / 8 / 10 mm
ytbehandling	ZN5 = blankkrom ZN1 = mattkrom ZNPVD22 = RF look ZN35 = matt svart

8124_GG_180

glas-glas 180°

detaljer monteringsanvisningar

art.-nr.	8124
egenskaper	opens inwards 180° continuous seal profile concealed screws with cover plate
glastjocklek	6 / 8 / 10 mm
ytbehandling	ZN5 = blankkrom ZN1 = mattkrom ZNPVD22 = RF look ZN35 = matt svart

8126_GG_135

glas-glas 135°

detaljer assembly instructions

art.-nr.	8126
egenskaper	opens outwards 200° continuous seal profile concealed screws with cover plate
glastjocklek	6 / 8 / 10 mm
ytbehandling	ZN5 = blankkrom ZN1 = mattkrom ZNPVD22 = RF look ZN35 = matt svart

8124_GG_90

glas-glas 90°

detaljer monteringsanvisningar

art.-nr.	8124
egenskaper	opens inwards 90° oblong hole adjustment with cover plate continuous seal profile concealed screws with cover plate
glastjocklek	6 / 8 / 10 mm
ytbehandling	ZN5 = blankkrom ZN1 = mattkrom ZNPVD22 = RF look ZN35 = matt svart

FARFALLA

mångsidig och tidlös

fasta beslag FARFALLA

finns även för PAPILLON och PILLANGO

8106_GW_winkel

glas-vägg 90°

art.-nr.	8106
egenskaper	oblong hole adjustment with cover plate fixed
glastjocklek	6 / 8 / 10 mm
ytbehandling	ZN5 = blankkrom ZN1 = mattkrom ZNPVD22 = RF look

8108_GG_winkel

glas-glas 90°

art.-nr.	8108
egenskaper	fixed
glastjocklek	6 / 8 / 10 mm
ytbehandling	ZN5 = blankkrom ZN1 = mattkrom ZNPVD22 = RF look

8110_GW_verbinder

glas-vägg 180°

art.-nr.	8110
egenskaper	oblong hole adjustment with cover plate mounting plate usable left or right
glastjocklek	6 / 8 / 10 mm
ytbehandling	ZN5 = blankkrom ZN1 = mattkrom ZNPVD22 = RF look

8107_GW_winkel

glas-vägg 90°

detaljer monteringsanvisningar

art.-nr.	8107
egenskaper	oblong hole adjustment fixed concealed screws with cover plate
glastjocklek	6 / 8 / 10 mm
ytbehandling	ZN5 = blankkrom ZN1 = mattkrom ZNPVD22 = RF look ZN35 = matt svart

8109_GG_winkel

glas-vägg 90°

detaljer monteringsanvisningar

art.-nr.	8109
egenskaper	concealed screws with cover plate
glastjocklek	6 / 8 / 10 mm
ytbehandling	ZN5 = blankkrom ZN1 = mattkrom ZNPVD22 = RF look ZN35 = matt svart
