stabilisering

nya detaljer till våra stabiliseringsstag

fyrkant

ny klämteknik

Stabiliseringsstaget fixeras med en insexs-skruv från ovansidan av T-kopplingen

lätt att montera

Alla skruvar på de enskilda beslagen, liksom på de kompletta stabiliseringsstagen kan monteras med en insexnyckel.

Informationsblad

och tekniska detaljer

Produkt-Info: 8794 och 8439
stabiliseringsstag och stabilisering-vinkelbeslag (tyska och engelska)

stabiliseringsstag kompletta set

glas-vägg, 1000 mm

Details

article no	8794ZN5-1000
features	Glas-Vägg
glass thickness	6 / 8 / 10 mm
surface colors	ZN5 = blank, krom

glas-glas, 1000 mm

Details

article no	8795ZN5-1000
features	glas-glas
glass thickness	6 / 8 / 10 mm
surface colors	ZN5 = blank, krom

glas-T-koppling, 460 mm

Details

article no	8797ZN5-460
features	Glas-T-Stück
glass thickness	6 / 8 / 10 mm
surface colors	ZN5 = glanzverchromt

glas-vägg 45°, 460 mm

Details

article no	8796ZN5-460
features	glass-wall 45°
glass thickness	6 / 8 / 10 mm
surface colors	ZN5 = gloss chrome

glas-vägg, 1500 mm

Details

article no	8798ZN5-1500
features	glass-wall
glass thickness	6 / 8 / 10 mm
surface colors	ZN5 = gloss chrome

Tillbehör – Stabiliseringsstag

Rör

till stabiliseringsstag, kan kapas till önskad längd

Details

article no	surface colors	length
8688-5E6EV5-460	pickled aluminum polished and anodized	460 mm
8688-5E6EV5-1000	pickled aluminum polished and anodized	1000 mm
8688-5E6EV5-1500	pickled aluminum polished and anodized	1500 mm
8688-5E6EV5-2000	pickled aluminum polished and anodized	2000 mm
8688-5E6EV1-1000	Aluminum optic (anodised silver)	1000 mm
8688-5E6EV1-1500	Aluminum optic (anodised silver)	1500 mm
8688-5MS7-1300	gloss chrome	1300 mm
8688-5MSPVD20-500	gold optic	500 mm
8688-5MSPVD20-1000	gold optic	1000 mm
8688-5MS5-500	gloss nickel	500 mm
8688-5MS5-1000	gloss nickel	1000 mm
8688-5MSPVD35-500	black matt	500 mm
8688-5MSPVD35-1000	black matt	1000 mm
8688-5MSPVD35-1400	black matt	1400 mm
8688-5MSPVD36-500	black gloss	500 mm
8688-5MSPVD36-1000	black gloss	1000 mm
8688-5AL35-500	RAL9005 black matt	500 mm
8688-5AL35-1000	RAL9005 black matt	1000 mm
8688-5AL35-1500	RAL9005 black matt	1500 mm
8688-5AL35-2000	RAL9005 black matt	2000 mm
8688-5AL36-500	RAL9005 black gloss	500 mm
8688-5AL36-1000	RAL9005 black gloss	1000 mm
8688-5E123-460	stainless steel optic	460 mm
8688-5E123-1000	stainless steel optic	1000 mm
8688-5E123-1500	stainless steel optic	1500 mm
8688-5E123-2000	stainless steel optic	2000 mm

Hörnförbindning

justerbar 90-180°

Details

Art.-Nr.	8794ZN-EV
Merkmale	drehbar
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = glanzverchromt ZN1 = mattverchromt ZNPVD22 = Edelstahleffekt ZNPVD20 = Gold glänzend ZNPVD35 = schwarz matt ZNPVD36 = schwarz glänzend ZN10 = glanzvernickelt ZN35 = RAL9005 schwarz matt ZN36 = RAL9005 schwarz glänzend

Glasfäste

justerbar 90°

Details

Art.-Nr.	8794ZN-GL
Merkmale	drehbar
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = glanzverchromt ZN1 = mattverchromt ZNPVD22 = Edelstahleffekt ZNPVD20 = Gold glänzend ZNPVD35 = schwarz matt ZNPVD36 = schwarz glänzend ZN10 = glanzvernickelt ZN35 = RAL9005 schwarz matt ZN36 = RAL9005 schwarz glänzend

T-koppling till stag

Details

Art.-Nr.	8797ZN-T
Merkmale	T-Stück
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = glanzverchromt ZN1 = mattverchromt ZNPVD22 = Edelstahleffekt ZNPVD20 = Gold glänzend ZNPVD35 = schwarz matt ZNPVD36 = schwarz glänzend ZN10 = glanzvernickelt ZN35 = RAL9005 schwarz matt ZN36 = RAL9005 schwarz glänzend

glashållare, försänkt.

justerbar 45°

Details

Art.-Nr.	8794ZN-GF
Merkmale	45° drehbar
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = glanzverchromt ZN1 = mattverchromt ZNPVD22 = Edelstahleffekt ZNPVD20 = Gold glänzend ZNPVD35 = schwarz matt ZNPVD36 = schwarz glänzend ZN10 = glanzvernickelt ZN35 = RAL9005 schwarz matt ZN36 = RAL9005 schwarz glänzend

glashållare-, T-koppling

sidoljus, dubbelsidig

Details

Art.-Nr.	8794ZN-TS
Merkmale	Seitenteil, beidseitig
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = glanzverchromt ZN1 = mattverchromt ZNPVD22 = Edelstahleffekt ZNPVD20 = Gold glänzend ZNPVD35 = schwarz matt ZNPVD36 = schwarz glänzend ZN10 = glanzvernickelt ZN35 = RAL9005 schwarz matt ZN36 = RAL9005 schwarz glänzend

glashållare-, T-koppling

Details

Art.-Nr.	8794ZN-GTL
Merkmale	T-Stück
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = glanzverchromt ZN1 = mattverchromt ZNPVD22 = Edelstahleffekt ZNPVD20 = Gold glänzend ZNPVD35 = schwarz matt ZNPVD36 = schwarz glänzend ZN10 = glanzvernickelt ZN35 = RAL9005 schwarz matt ZN36 = RAL9005 schwarz glänzend

väggfäste

justerbar 90°

Details

Art.-Nr.	8794ZN-WV
Merkmale	90° drehbar
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = glanzverchromt ZN1 = mattverchromt ZNPVD22 = Edelstahleffekt ZNPVD20 = Gold glänzend ZNPVD35 = schwarz matt ZNPVD36 = schwarz glänzend ZN10 = glanzvernickelt ZN35 = RAL9005 schwarz matt ZN36 = RAL9005 schwarz glänzend

ytterligare detaljer

glashållare

Details

Art.-Nr.	8498MS-G
Merkmale	glass adapter
Glasdicke	6 / 8 / 10 mm
Oberflächen	MS7 = gloss chrome MSPVD35 = black matt MSPVD36 = black gloss

rörförbindning 180°

Details

Art.-Nr.	8494MS-V180
Merkmale	tube connector 180°
Glasdicke	6 / 8 / 10 mm
Oberflächen	MS7 = gloss chrome MSPVD35 = black matt MSPVD36 = black gloss

new stabilizer bar

round

stabalizer bar sets

round

glass-wall, 1000 mm

8744ZN5-1000

Details

Art.-Nr.	8744ZN5-1000
Merkmale	Glas-Wand
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = glanzverchromt

glass-glass, 1000 mm

8745ZN5-1000

Details

Art.-Nr.	8745ZN5-1000
Merkmale	Glas-Wand
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = glanzverchromt

glass-T-piece, 460 mm

8747ZN5-460

Details

Art.-Nr.	8747ZN5-460
Merkmale	Glas-T-Stück
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = glanzverchromt

glass-wall 45°, 460 mm

8746ZN5-460

Details

Art.-Nr.	8796ZN5-460
Merkmale	Glas-Wand 45°
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = glanzverchromt

glass-wall, 1500 mm

8748ZN5-1500

Details

Art.-Nr.	8748ZN5-1500
Merkmale	Glas-Wand
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = glanzverchromt

single components

round

tube

for stabalizer bar

Details

Art.-Nr.	Oberfläche	Länge
8688-5E6EV5-460	Aluminium-spezialgebeizt-glanzeloxiert	460 mm
8688-5E6EV5-1000	Aluminium-spezialgebeizt-glanzeloxiert	1000 mm
8688-5E6EV5-1500	Aluminium-spezialgebeizt-glanzeloxiert	1500 mm
8688-5E6EV5-2000	Aluminium-spezialgebeizt-glanzeloxiert	2000 mm
8688-5E6EV1-1000	Alu-Optik (silberfarbig eloxiert)	1000 mm
8688-5E6EV1-1500	Alu-Optik (silberfarbig eloxiert)	1500 mm
8688-5MS7-1300	glanzverchromt	1300 mm
8688-5MSPVD20-500	Goldoptik	500 mm
8688-5MSPVD20-1000	Goldoptik	1000 mm
8688-5MS5-500	glanzvernickelt	500 mm
8688-5MS5-1000	glanzvernickelt	1000 mm
8688-5MSPVD35-500	schwarz matt	500 mm
8688-5MSPVD35-1000	schwarz matt	1000 mm
8688-5MSPVD35-1400	schwarz matt	1400 mm
8688-5MSPVD36-500	schwarz glänzend	500 mm
8688-5MSPVD36-1000	schwarz glänzend	1000 mm
8688-5AL35-500	RAL9005 schwarz matt	500 mm
8688-5AL35-1000	RAL9005 schwarz matt	1000 mm
8688-5AL35-1500	RAL9005 schwarz matt	1500 mm
8688-5AL35-2000	RAL9005 schwarz matt	2000 mm
8688-5AL36-500	RAL9005 schwarz glänzend	500 mm
8688-5AL36-1000	RAL9005 schwarz glänzend	1000 mm
8688-5E123-460	Edelstahloptik	460 mm
8688-5E123-1000	Edelstahloptik	1000 mm
8688-5E123-1500	Edelstahloptik	1500 mm
8688-5E123-2000	Edelstahloptik	2000 mm

angle adapter 90°

90° adjustable

Details

Art.-Nr.	8744ZN-EV
Merkmale	drehbar
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = glanzverchromt ZN1 = mattverchromt ZNPVD22 = Edelstahleffekt ZNPVD20 = Gold glänzend ZNPVD35 = schwarz matt ZNPVD36 = schwarz glänzend ZN10 = glanzvernickelt ZN35 = RAL9005 schwarz matt ZN36 = RAL9005 schwarz glänzend

angle adapter glass 90°

90° adjustable

Details

Art.-Nr.	8744ZN-GL
Merkmale	drehbar
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = glanzverchromt ZN1 = mattverchromt ZNPVD22 = Edelstahleffekt ZNPVD20 = Gold glänzend ZNPVD35 = schwarz matt ZNPVD36 = schwarz glänzend ZN10 = glanzvernickelt ZN35 = RAL9005 schwarz matt ZN36 = RAL9005 schwarz glänzend

T-adapter

Details

Art.-Nr.	8747ZN-T
Merkmale	T-Stück
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = glanzverchromt ZN1 = mattverchromt ZNPVD22 = Edelstahleffekt ZNPVD20 = Gold glänzend ZNPVD35 = schwarz matt ZNPVD36 = schwarz glänzend ZN10 = glanzvernickelt ZN35 = RAL9005 schwarz matt ZN36 = RAL9005 schwarz glänzend

glass-, T-adapter

side panel, double sided

Details

Art.-Nr.	8747ZN-TS
Merkmale	Seitenteil, beidseitig
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = glanzverchromt ZN1 = mattverchromt ZNPVD22 = Edelstahleffekt ZNPVD20 = Gold glänzend ZNPVD35 = schwarz matt ZNPVD36 = schwarz glänzend ZN10 = glanzvernickelt ZN35 = RAL9005 schwarz matt ZN36 = RAL9005 schwarz glänzend

glass-, T-adapter

Details

Art.-Nr.	8744ZN-GTL
Merkmale	T-Stück
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = glanzverchromt ZN1 = mattverchromt ZNPVD22 = Edelstahleffekt ZNPVD20 = Gold glänzend ZNPVD35 = schwarz matt ZNPVD36 = schwarz glänzend ZN10 = glanzvernickelt ZN35 = RAL9005 schwarz matt ZN36 = RAL9005 schwarz glänzend

wall adapter

90° adjustable

Details

Art.-Nr.	8744ZN-WV
Merkmale	90° drehbar
Glasdicke	6 / 8 / 10 mm
Oberflächen	ZN5 = glanzverchromt ZN1 = mattverchromt ZNPVD22 = Edelstahleffekt ZNPVD20 = Gold glänzend ZNPVD35 = schwarz matt ZNPVD36 = schwarz glänzend ZN10 = glanzvernickelt ZN35 = RAL9005 schwarz matt ZN36 = RAL9005 schwarz glänzend

stabilisering-vinkelbeslag, justerbart

180 mm

vänster

details

art.-nr.	8439ZNL-180
features	ajustability 90° ± 2° stabilizer bracket with slotted hole adjustment on the wall side attachable to top edge of the glass panel no glass processing concealed screws
glass thickness	6 / 8 / 10 mm
surface colors	ZN5 = gloss chrome ZN1 = matt chrome ZN10 = gloss nickel ZNPVD22 = stainless steel optic ZNPVD20 = gold optic ZNPVD35 = black matt ZNPVD36 = black gloss ZN35 = black matt ZN36 = black gloss

180 mm

höger

details

art.-nr.	8439ZNR-180
features	ajustability 90° ± 2° stabilizer bracket with slotted hole adjustment on the wall side attachable to top edge of the glass panel no glass processing concealed screws
glass thickness	6 / 8 / 10 mm
surface colors	ZN5 = gloss chrome ZN1 = matt chrome ZN10 = gloss nickel ZNPVD22 = stainless steel optic ZNPVD20 = gold optic ZNPVD35 = black matt ZNPVD36 = black gloss ZN35 = black matt ZN36 = black gloss

280 mm

vänster

details

art.-nr.	8439ZNL-280
features	ajustability 90° ± 2° stabilizer bracket with slotted hole adjustment on the wall side attachable to top edge of the glass panel no glass processing concealed screws
glass thickness	6 / 8 / 10 mm
surface colors	ZN5 = gloss chrome ZN1 = matt chrome ZN10 = gloss nickel ZNPVD22 = stainless steel optic ZNPVD20 = gold optic ZNPVD35 = black matt ZNPVD36 = black gloss ZN35 = black matt ZN36 = black gloss

280 mm

höger

details

art.-nr.	8439ZNR-180
features	ajustability 90° ± 2° stabilizer bracket with slotted hole adjustment on the wall side attachable to top edge of the glass panel no glass processing concealed screws
glass thickness	6 / 8 / 10 mm
surface colors	ZN5 = gloss chrome ZN1 = matt chrome ZN10 = gloss nickel ZNPVD22 = stainless steel optic ZNPVD20 = gold optic ZNPVD35 = black matt ZNPVD36 = black gloss ZN35 = black matt ZN36 = black gloss

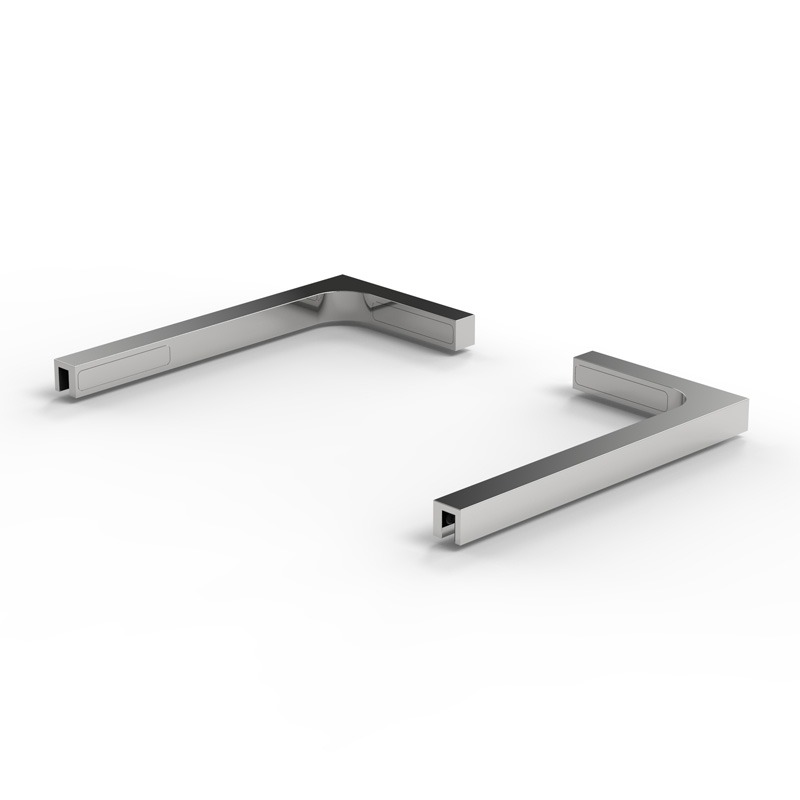

stabilisering- vinkelbeslag, fast

vänster + höger

details

art.-nr.	8449_+L/+R
features	stabilizer bracket with slotted hole adjustment on the wall side attachable to top edge of the glass panel no glass processing concealed screws
glass thickness	6 / 8 / 10 mm
surface colors	MS7 = gloss chrome MS10 = matt chrome MSPVD22 = stainless steel optic MSPVD35 = black matt MSPVD36 = black gloss

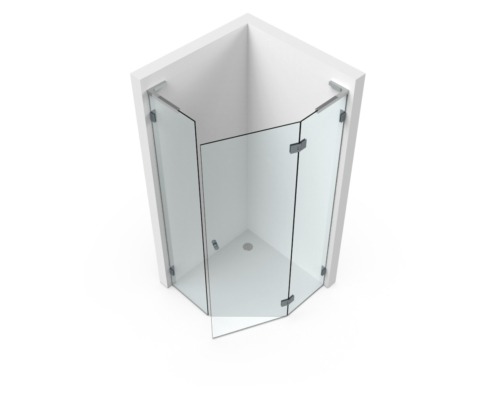

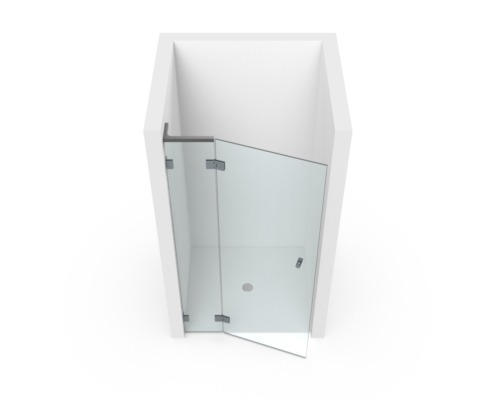

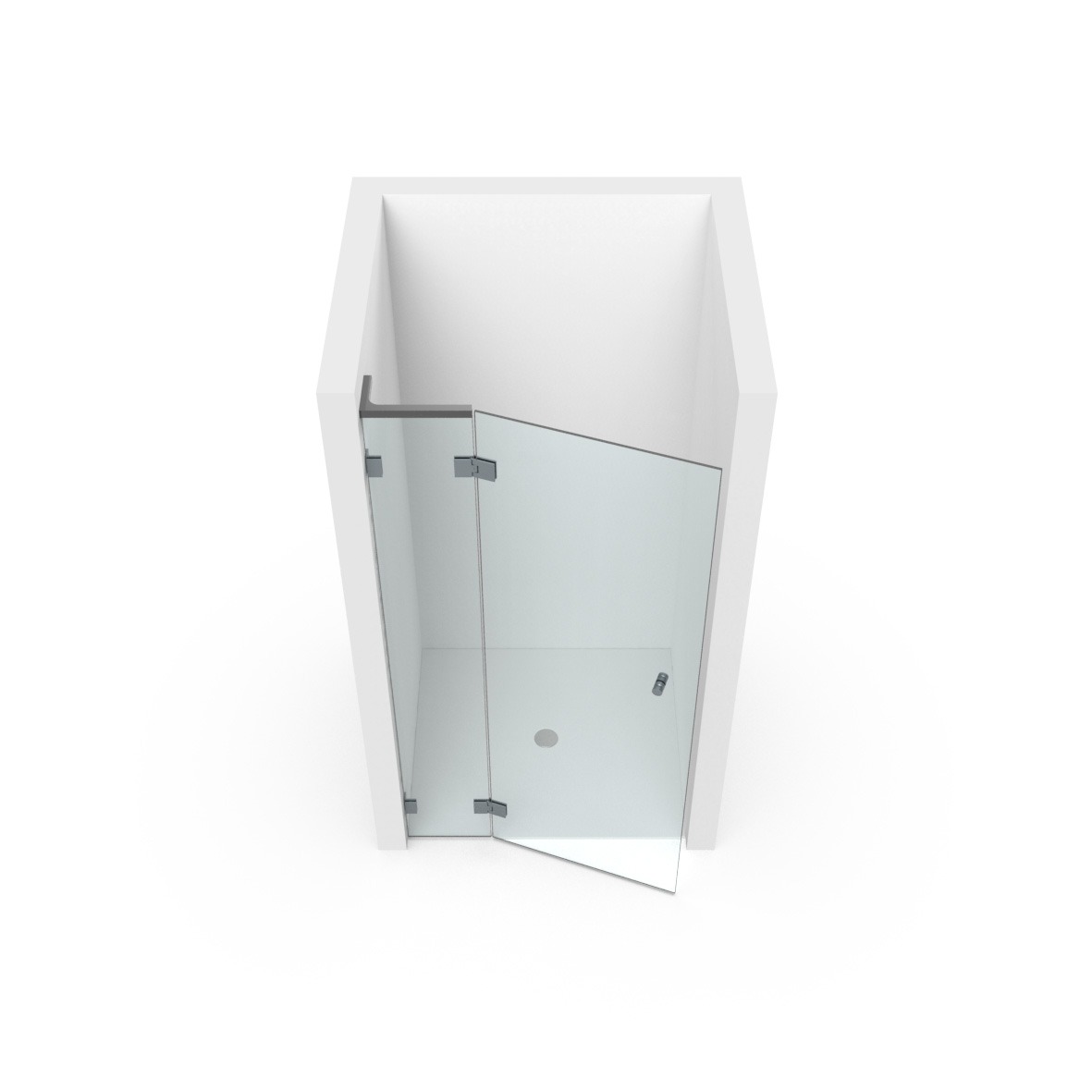

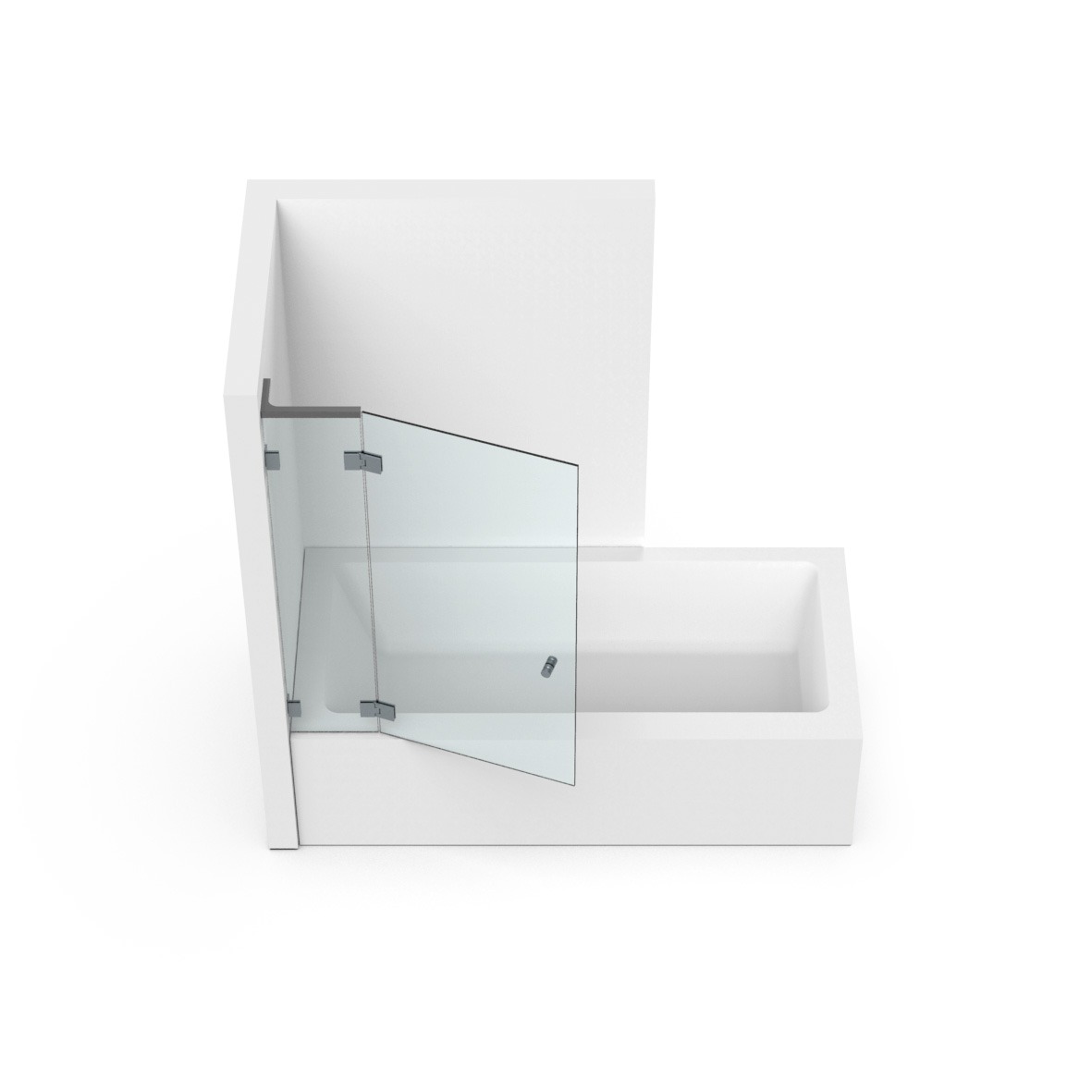

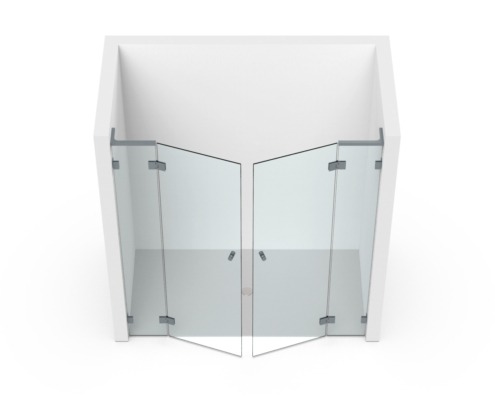

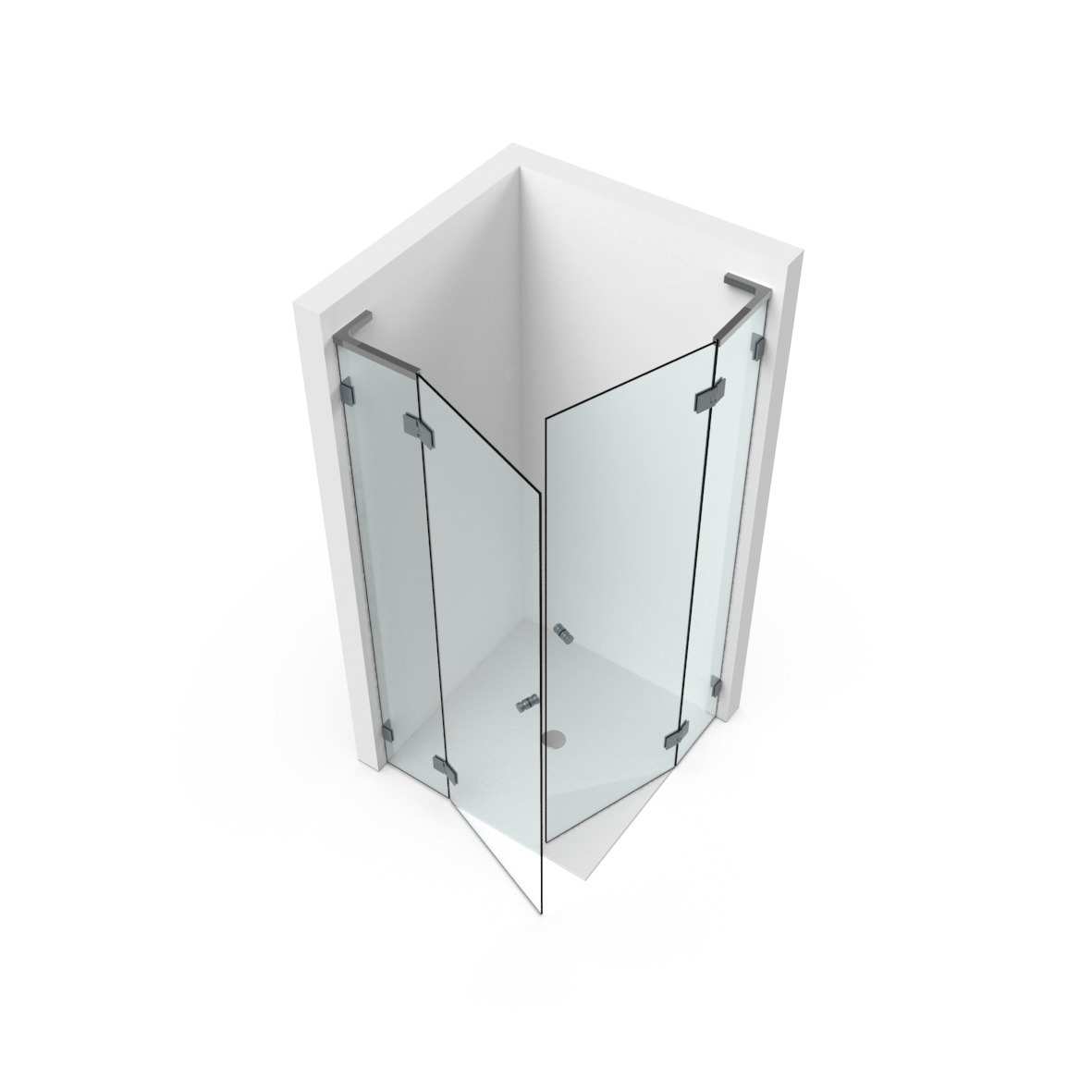

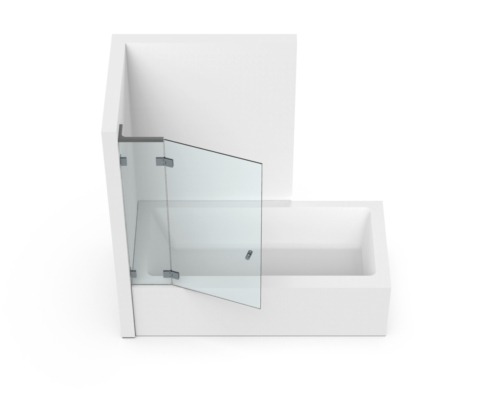

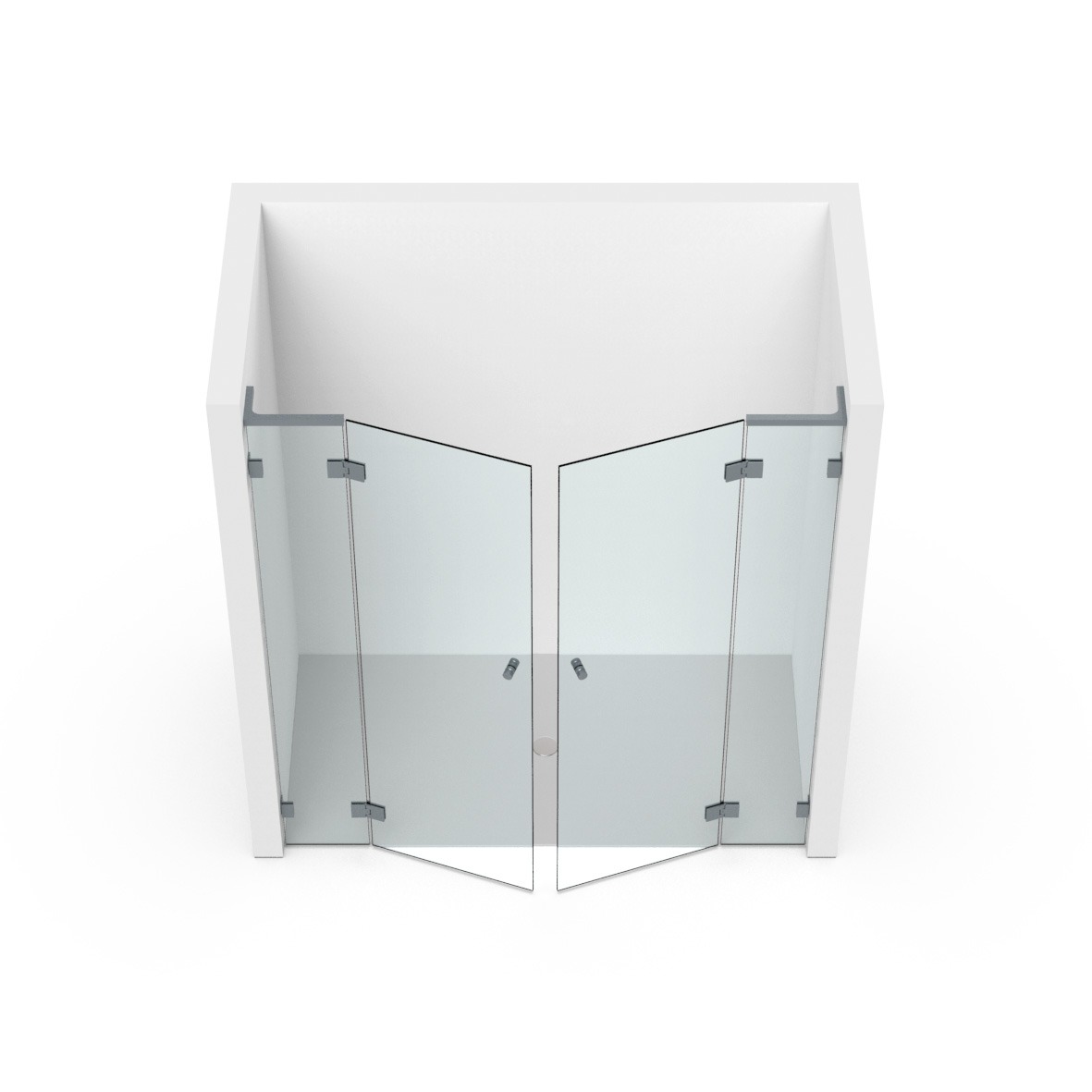

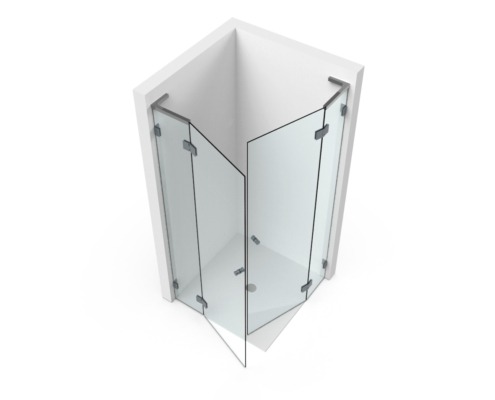

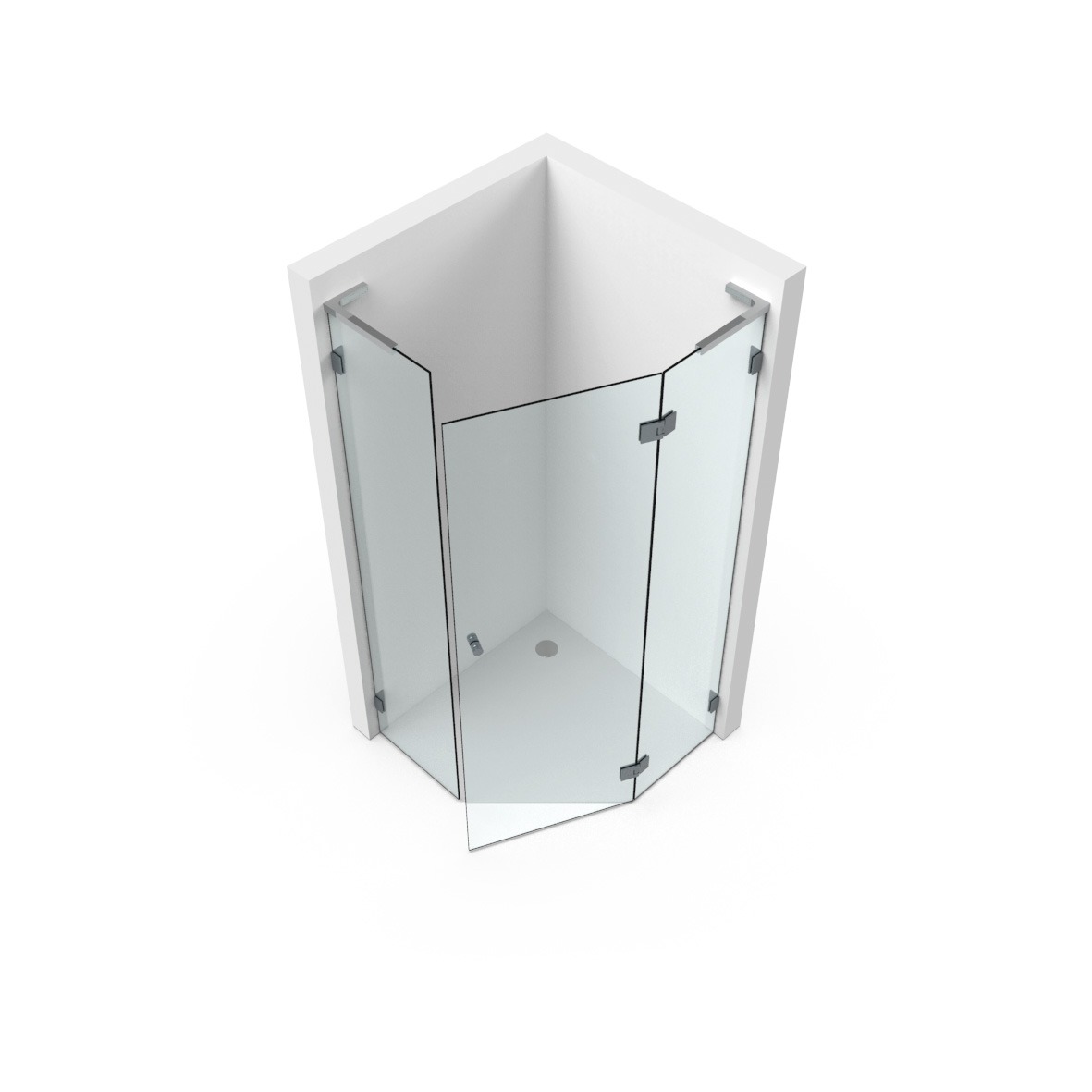

applications

stabilizer angle bracket, glass-glass

150 mm

Details

art.-nr.	8438ZN_-150
features	attachable to top edge of the glass panel no glass processing concealed screws
glass thickness	6 / 8 / 10 mm
surface color	ZN5 = gloss chrome ZN1 = matt chrome ZN10 = gloss nickel ZNPVD22 = stainless steel optic ZNPVD20 = gold optic ZNPVD35 = black matt ZNPVD36 = black gloss ZN35 = black matt ZN36 = black gloss

250 mm

Details

art.-nr.	8438ZN_-250
features	attachable to top edge of the glass panel no glass processing concealed screws
glass thickness	6 / 8 / 10 mm
surface color	ZN5 = gloss chrome ZN1 = matt chrome ZN10 = gloss nickel ZNPVD22 = stainless steel optic ZNPVD20 = gold optic ZNPVD35 = black matt ZNPVD36 = black gloss ZN35 = black matt ZN36 = black gloss

Nyhet hyllbeslag för duschar

glas-vägg 90°

fast

detaljer

Art.-Nr.	8209ZN
egenskaper	olika underlägg vänster eller höger dold infästning
glastjocklek	8 / 10 mm
ytbehandling	ZN5 = blankkrom

monteringsanvisningar

8209ZN hyllbeslag för duschar
monteringsanvisningar (tyska och engelska)

olika underlägg

designidéer

rektangulära stabiliseringsstag

justerbara stabiliseringsstag

glas-vägg

details

art.-nr.	8474MS_
features	double sided 90° adjustable
lengths (mm)	380 / 510 / 640 / 770 / 900 / 1030 / 1160 / 1260 / 1390 / 1520 / 1650 / 1780 / 1910
glass thickness	8 – 10 mm
surface colors	MS7 = gloss chrome MS10 = matt chrome MSPVD22 = stainless steel optic

glas-glas

details

art.-nr.	8475MS_
features	double sided 90° adjustable
lengths (mm)	370 / 500 / 630 / 760 / 890 / 1020 / 1150 / 1250 / 1390 / 1510 / 1640 / 1770 / 1900
glass thickness	6 – 10 mm
surface colors	MS7 = glosschrome MS10 = matt chrome MSPVD22 =stainless steel optic

runda stabiliseringsstag

justerbara stabiliseringsstag

glas-vägg

details

art.-nr.	8432MS_
features	with adjustable wall bracket e.g. for ceiling slopes adjustability via right-left thread inside the tube
lengths (mm)	395 / 590 / 730 / 860 / 990 / 1050 / 1190 / 1330 / 1460 / 1590 / 1720 / 1850
glass thickness	8 – 10 mm
surface colors	ZN5 = gloss chrome ZN1 = matt chrome ZNPVD22 = stainless steel optic

glas-glas

details

art.-nr.	8434MS_
features	adjustability via right-left thread inside the tube
lengths (mm)	375 / 570 / 710 / 840 / 970 / 1030 / 1170 / 1310 / 1440 / 1570 / 1700 / 1830
glass thickness	8 – 10 mm
surface colors	ZN5 = gloss chrome ZN1 = matt chrome ZNPVD22 = stainless steel optic

stabilisering

nya detaljer till våra stabiliseringsstag

ny klämteknik

lätt att montera

Informationsblad

Produkt-Info: 8794 och 8439

stabiliseringsstag kompletta set

glas-vägg, 1000 mm

glas-glas, 1000 mm

glas-T-koppling, 460 mm

glas-vägg 45°, 460 mm

glas-vägg, 1500 mm

Tillbehör – Stabiliseringsstag

Rör

Hörnförbindning

Glasfäste

T-koppling till stag

glashållare, försänkt.

glashållare-, T-koppling

glashållare-, T-koppling

väggfäste

ytterligare detaljer

glashållare

rörförbindning 180°

new stabilizer bar

stabalizer bar sets

glass-wall, 1000 mm

glass-glass, 1000 mm

glass-T-piece, 460 mm

glass-wall 45°, 460 mm

glass-wall, 1500 mm

single components

tube

angle adapter 90°

angle adapter glass 90°

T-adapter

glass-, T-adapter

glass-, T-adapter

wall adapter

stabilisering-vinkelbeslag, justerbart

180 mm

180 mm

280 mm

280 mm

stabilisering- vinkelbeslag, fast

vänster + höger

applications

stabilizer angle bracket, glass-glass

150 mm

250 mm

Nyhet hyllbeslag för duschar

glas-vägg 90°

monteringsanvisningar

8209ZN hyllbeslag för duschar

olika underlägg

designidéer

rektangulära stabiliseringsstag

justerbara stabiliseringsstag

glas-vägg

glas-glas

runda stabiliseringsstag

justerbara stabiliseringsstag

glas-vägg

glas-glas

Kontakt

Utbildning

Service

Pauli Scandinavia
