FLUTURE

series overview

series overview

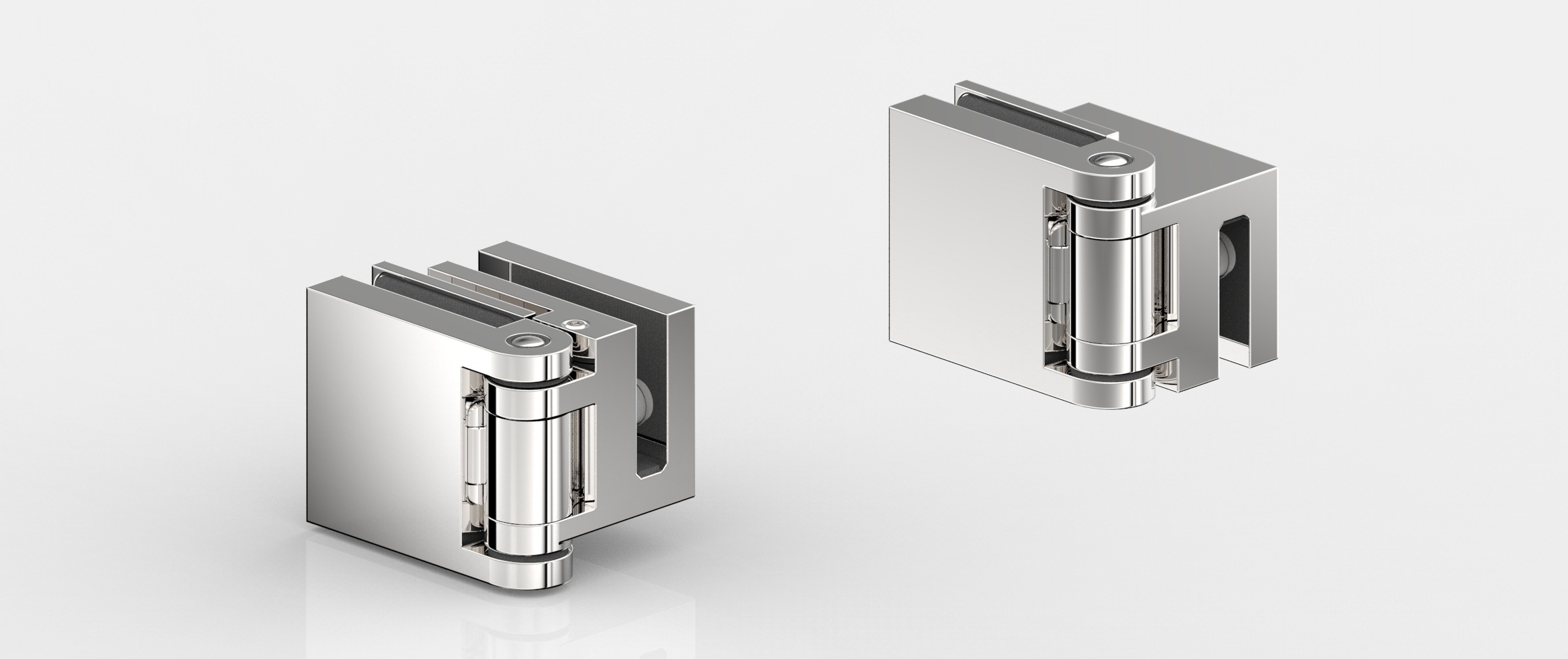

8192-B_chrom

8192-B_mattchrom

8192-B_VA

blankkrom mattkrom RF look

Föregående Nästa

anslagsgångjärn FLUTURE

8190-BS

glas-glas 180°

8190ZN5

detaljer assembly instructions

art.-nr.	8190_-BS
egenskaper	opens outwards 180° use with water repelling seal 8863
glastjocklek	6 / 8 mm
ytbehandling	ZN5 = blankkrom ZN1 = mattkrom ZNPVD22 = RF look

8192-BS

glas-glas 180°

8192ZN5

detaljer assembly instructions

art.-nr.	8192_-BS
egenskaper	opens outwards 180° use with splash guard and water-repelling seal 8864
glastjocklek	6 / 8 mm
ytbehandling	ZN5 = blankkrom ZN1 = mattkrom ZNPVD22 = RF look

FLUTURE

kubistisk formgivning med maximal transparens

fasta beslag FLUTURE

Finns även för FLAMEA, FLINTER and NIVELLO

8187_GW

glas-vägg 90°

8187ZN5

detaljer Montageanleitung

art.-nr.	8187
egenskaper	wall bracket with oblong hole adjustment concealed screws with cover plate
glastjocklek	6 / 8 / 10 mm
ytbehandling	ZN5 = blankkrom ZN1 = mattkrom ZNPVD22 = RF look ZNPVD35 = matt svart ZNPVD36 = blank svart

8188_GG

glas-glas 90°

8188ZN5

detaljer Montageanleitung

art.-nr.	8188
egenskaper	concealed screws with cover plate
glastjocklek	6 / 8 / 10 mm
ytbehandling	ZN5 = blankkrom ZN1 = mattkrom ZNPVD22 = RF look ZNPVD35 = matt svart ZNPVD36 = blank svart

8170_GW

glas-vägg 90°

8170ZN5

detaljer Montageanleitung

art.-nr.	8170
egenskaper	wall bracket with oblong hole adjustment concealed screws with cover plate
glastjocklek	6 / 8 / 10 mm
ytbehandling	ZN5 = blankkrom ZN1 = mattkrom ZNPVD22 = RF look ZNPVD35 = matt svart

8172_GG

glas-glas 90°

8172ZN5

detaljer assembly instructions

art.-nr.	8172
egenskaper	fixed
glastjocklek	6 / 8 / 10 mm
ytbehandling	ZN5 = blankkrom ZN1 = mattkrom ZNPVD22 = RF look ZNPVD35 = matt svart

8174_GW180

glas-vägg 180°

8174ZN5

detaljer assembly instructions

art.-nr.	8174
egenskaper	wall bracket with oblong hole adjustment with cover plate
glastjocklek	6 / 8 / 10 mm
ytbehandling	ZN5 = blankkrom ZN1 = mattkrom ZNPVD22 = RF look ZNPVD35 = matt svart

8178_GW

glas-vägg 90°

8178ZN5

detaljer assembly instructions

art.-nr.	8178
egenskaper	wall mount with oblong hole adjustment without wall bracket fastening screw incl.
glastjocklek	6 / 8 / 10 mm
ytbehandling	ZN5 = blankkrom ZN1 = mattkrom ZNPVD22 = RF look ZNPVD35 = matt svart

8171_GW

glas-vägg 90°

8171ZN5

detaljer assembly instructions

art.-nr.	8171
egenskaper	wall mount with oblong hole adjustment with cover plate fully adjustable from 60° – 100°
glastjocklek	6 / 8 / 10 mm
ytbehandling	ZN5 = blankkrom ZN1 = mattkrom ZNPVD22 = RF look ZNPVD35 = matt svart

8173_GW135

glas-vägg 135°

8173ZN5

detaljer assembly instructions

art.-nr.	8173
egenskaper	wall mount with oblong hole adjustment with cover plate fully adjustable from 100° – 140°
glastjocklek	6 / 8 / 10 mm
ytbehandling	ZN5 = blankkrom ZN1 = mattkrom ZNPVD22 = RF look ZNPVD35 = matt svart

8175_GG

glas-glas 90°

8175ZN5

detaljer assembly instructions

art.-nr.	8175
egenskaper	fully adjustable from 80° – 180°
glastjocklek	6 / 8 / 10 mm
ytbehandling	ZN5 = blankkrom ZN1 = mattkrom ZNPVD22 = RF look ZNPVD35 = matt svart
